2D Soil Collapse Test

Note

1. We use a classic example: 2D & 3D granular collapse^[1], to demonstrate how to establish computational models and solve them.

2. To successfully run the code, we will install the dependencies at the beginning of the code provided below. If you are already familiar with the Julia Pkg ENV and have installed the necessary packages, you can ignore this part.

3. We default to using Nvidia's GPU or x86/ARM CPUs. If you want to use other acceleration backends, please make modifications in the appropriate places in the code.

4. We use Unicode to enhance readability (when comparing formulas), but sometimes it may be confused with regular letters, such as $\nu$ and v. If you are using VSCode, you can enable the following in the settings:

"editor.unicodeHighlight.ambiguousCharacters": true,

5. You can copy and save it in the your_file.jl and run the file directly using Julia in REPL:

julia> include("path/to/your_file.jl")

Or run this file in the terminal:

bash> julia path/to/your_file.jl

Here is the complete 2D code

using Pkg
Pkg.add(["MaterialPointSolver", "MaterialPointGenerator", "CairoMakie", "CUDA"])
using MaterialPointSolver
using MaterialPointGenerator
using CairoMakie
using CUDA

2D model description

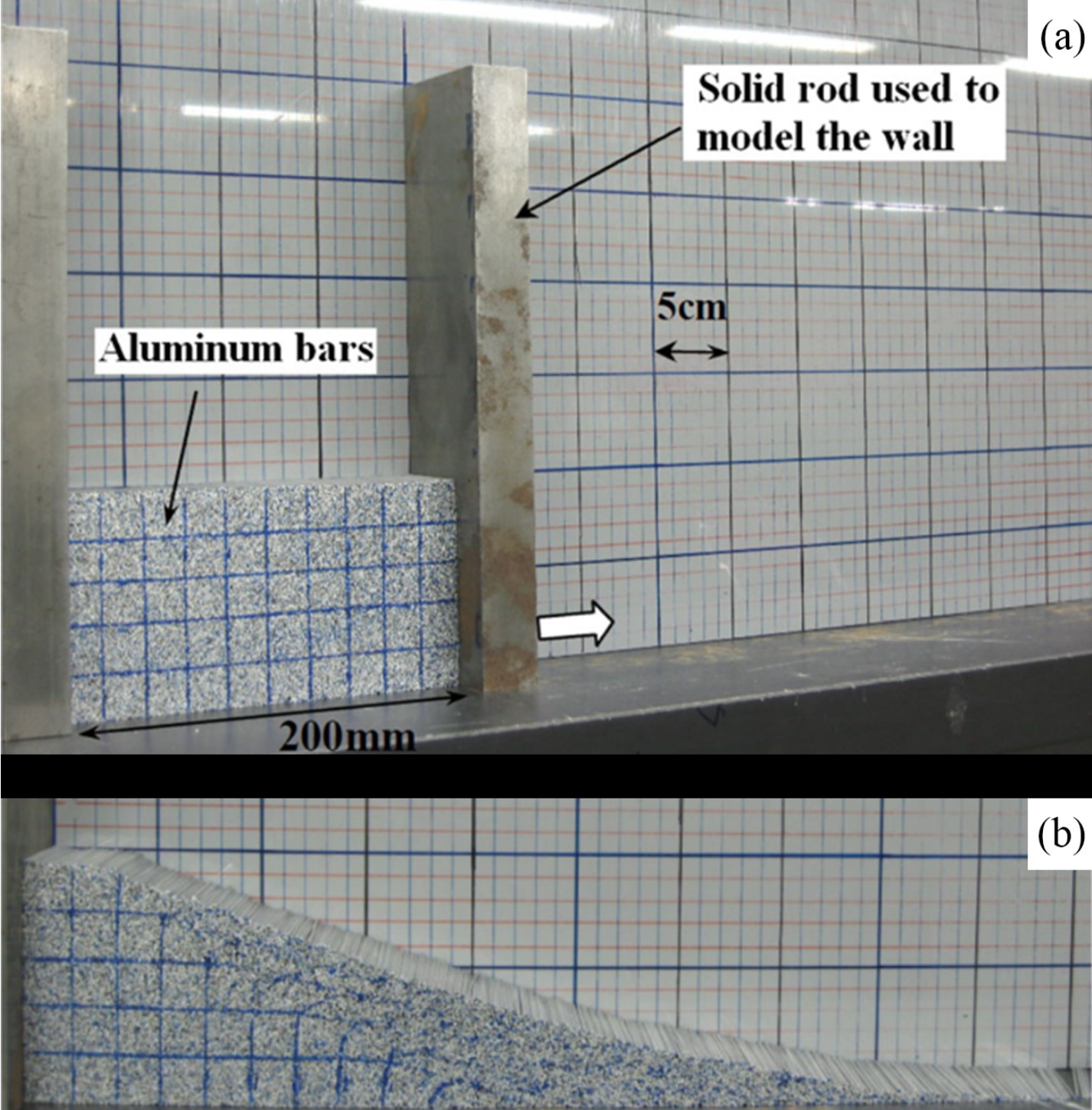

In this example, aluminum bars are used to model the non-cohesive soil collapse. We use uGIMP to simulate the failure process of soil collapse. The geometry of the numerical model is depicted in the figure, with a length $l$ of $0.2m$ and a height $h$ of $0.1m$. The parameters of the numerical model are provided in the Table.

Parameter	Value	Unit	Description
$\rho$	$2650$	$kg/m^3$	density
$\mu$	$0.3$	-	Poisson's ratio
$K$	$7\times {10}^5$	$Pa$	bulk modulus
$t_{sim}$	$1.0$	second	simulation time
$\varphi$	$19.8$	degree	friction angle
$\alpha$	$1.0$	-	FLIP-PIC mixing factor

2D code explaination

---

1. Bui, H.H., Fukagawa, R., Sako, K., Ohno, S., 2008. Lagrangian meshfree particles method (SPH) for large deformation and failure flows of geomaterial using elastic–plastic soil constitutive model. Int. J. Numer. Anal. Methods Geomech. 32, 1537–1570. https://doi.org/10.1002/nag.688 ↩︎
